Direct Lithium Extraction (DLE) for Beginners
What do candy, hats, and apples have to do with DLE? Here’s a simple explanation - no engineering degree required.

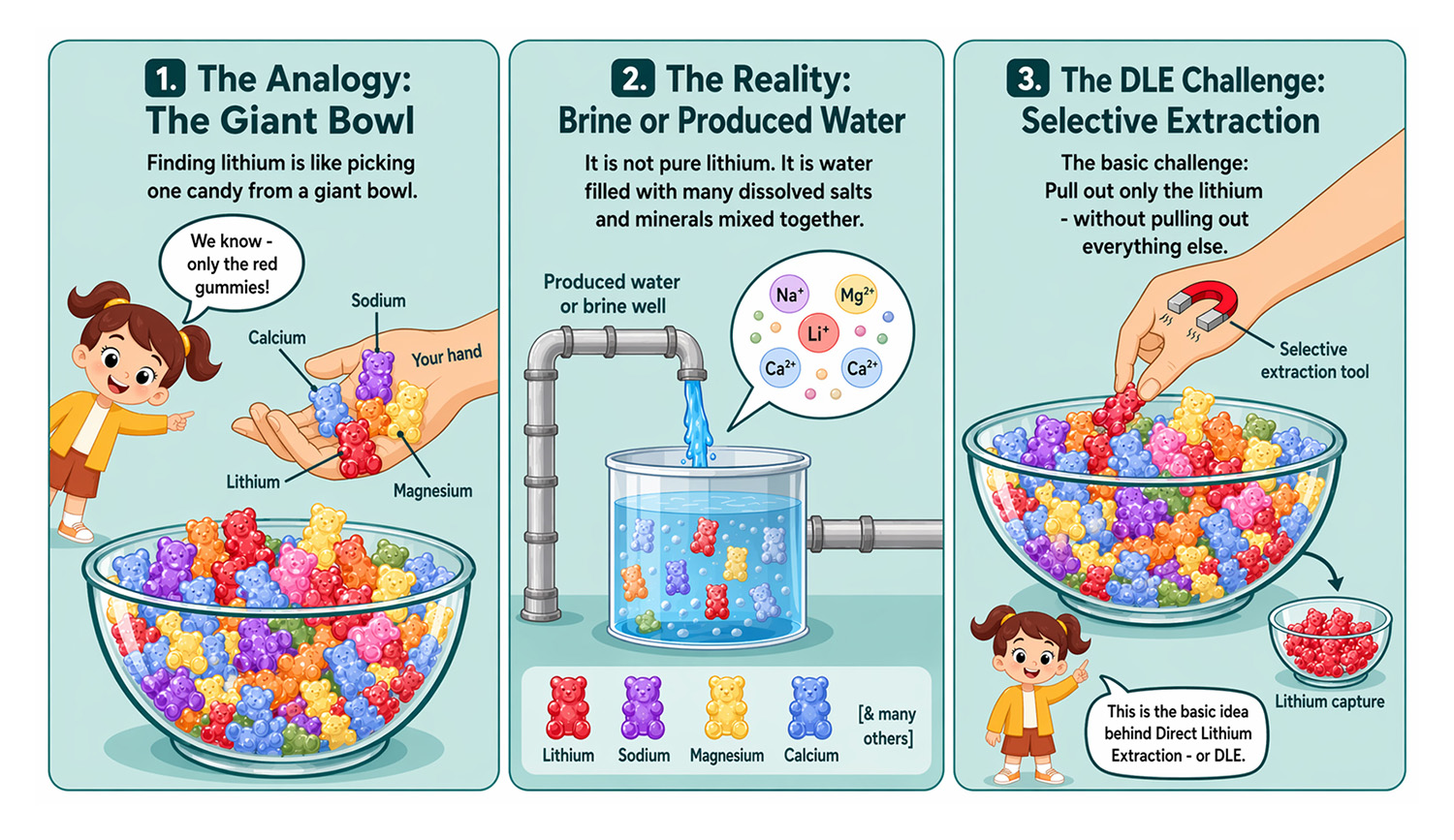

What If Finding Lithium Were Like Picking One Candy From a Giant Bowl?
Let’s make this simple.
Imagine a huge bowl filled with all sorts of tiny candies. Some are licorice, some are gummy bears, some are jelly beans, and only a few are your favorite red gummies (we know).
That is a bit like brine or produced water.
It is not pure lithium. It is water filled with many dissolved salts and minerals mixed together. Depending on the water source, it can include lithium, sodium, magnesium, calcium, potassium, and many other dissolved components.
Now imagine you want to pull out only the lithium - without collecting too much of everything else.
That is the basic challenge Direct Lithium Extraction, or DLE, is trying to solve.
For one important note: in adsorption-based DLE, the word is adsorption, not absorption.
- Absorption is when something is taken into the inside of another material, like water soaking into a sponge.
- Adsorption is when something sticks to the surface of a material - like dust sticking to a screen or a magnet picking up metal from a messy table.
That surface-level "catching" is what matters here.
If you imagine brine as a big crowd, adsorption-based DLE uses a very clever doorman. He knows how to spot lithium, lets most of the others walk past, and later guides the lithium into a separate room where it can be collected.

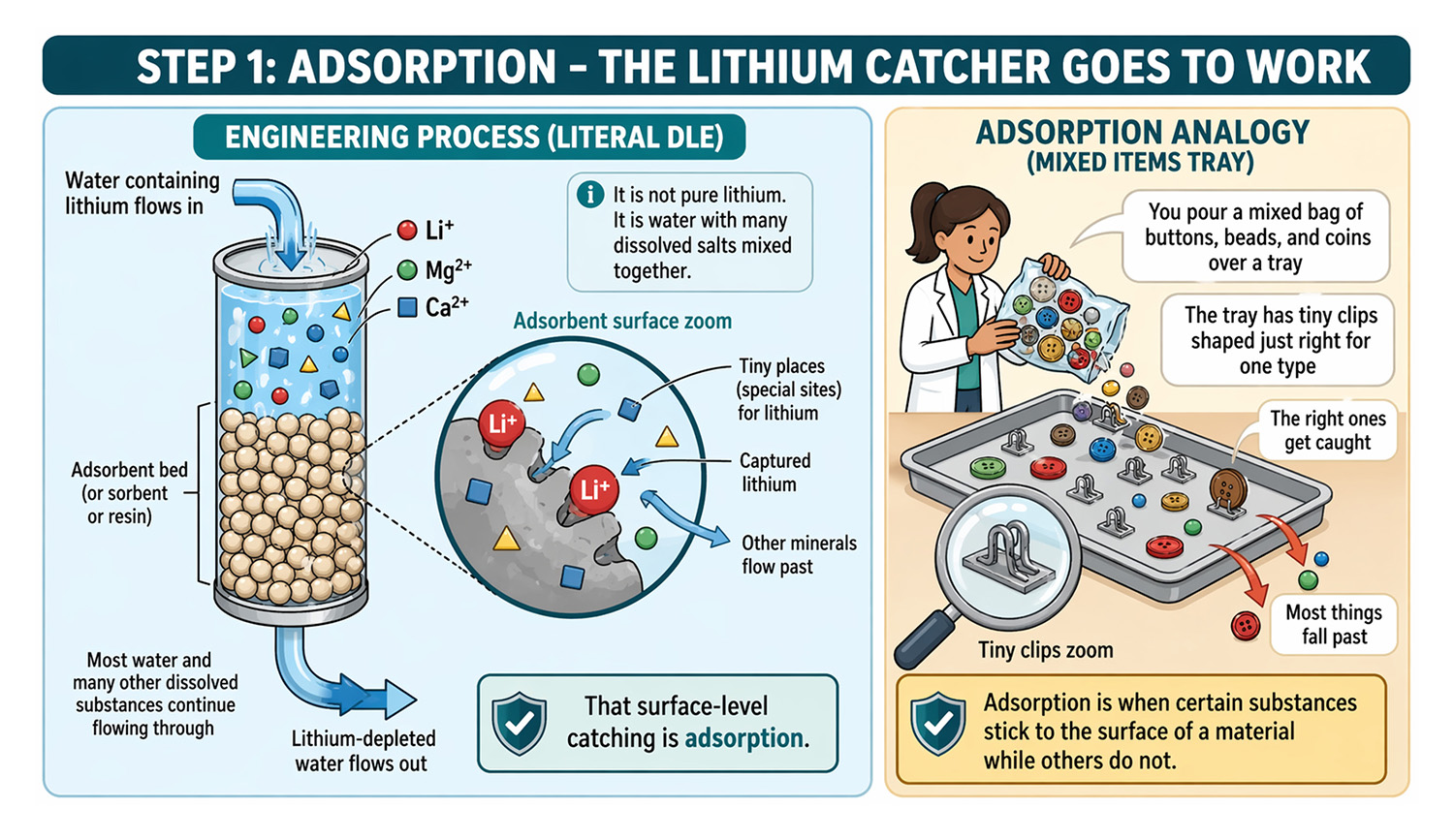

Step 1: Adsorption - the Lithium Catcher Goes to Work
Inside an adsorption-based DLE system is a special material designed to catch lithium from the water.
In engineering language, this material may be called an adsorbent, sorbent, or, in some systems, a resin. In simple terms, it acts like a very smart catcher with tiny places on its surface where lithium can stick.
As the water containing lithium flows past, the material captures lithium on its surface, while most of the water and many other dissolved substances continue flowing through.
That is adsorption - when certain substances stick to the surface of a material while others do not.
Think of it like this:
- You pour a mixed bag of buttons, beads, and coins over a tray
- The tray has tiny clips shaped just right for one type
- Most things fall past
- The right ones get caught
That surface-level catching is adsorption.

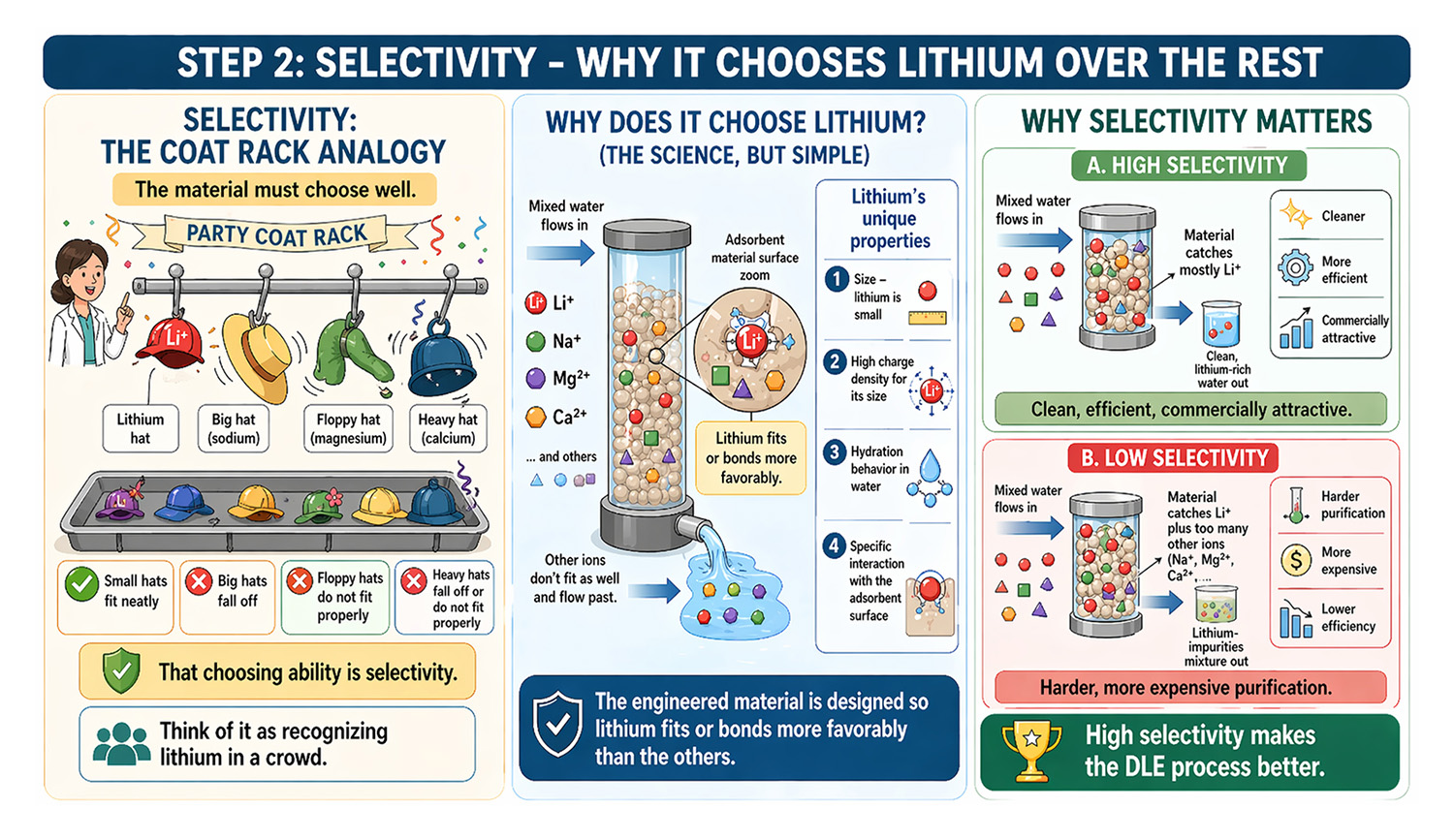

Step 2: Selectivity - Why It Chooses Lithium Over the Rest
This is the really clever part.
The water does not only contain lithium. In many brines, there can be much more sodium, magnesium, calcium, or potassium than lithium. So the material must do more than catch things - it must choose well.
That choosing ability is called selectivity.
Selectivity means the material is designed to prefer lithium over other dissolved substances.
Why does that happen?
Because lithium has its own:
- size
- charge density
- hydration behavior in water
- way of interacting with the adsorbent surface
The engineered material is designed so that lithium fits or bonds more favorably than the others.
Think of it like a coat rack at a party that only holds one particular kind of hat really well. Small hats fit neatly. Big hats, floppy hats, and heavy hats either do not fit properly or fall off.
That is selectivity.
And it matters a lot.
If the material grabs too many unwanted substances, the lithium becomes harder and more expensive to purify later. But if it strongly prefers lithium, the process becomes cleaner, more efficient, and more commercially attractive.
So when engineers say a DLE material is selective, what they really mean is:
It is good at recognizing lithium in a crowd.

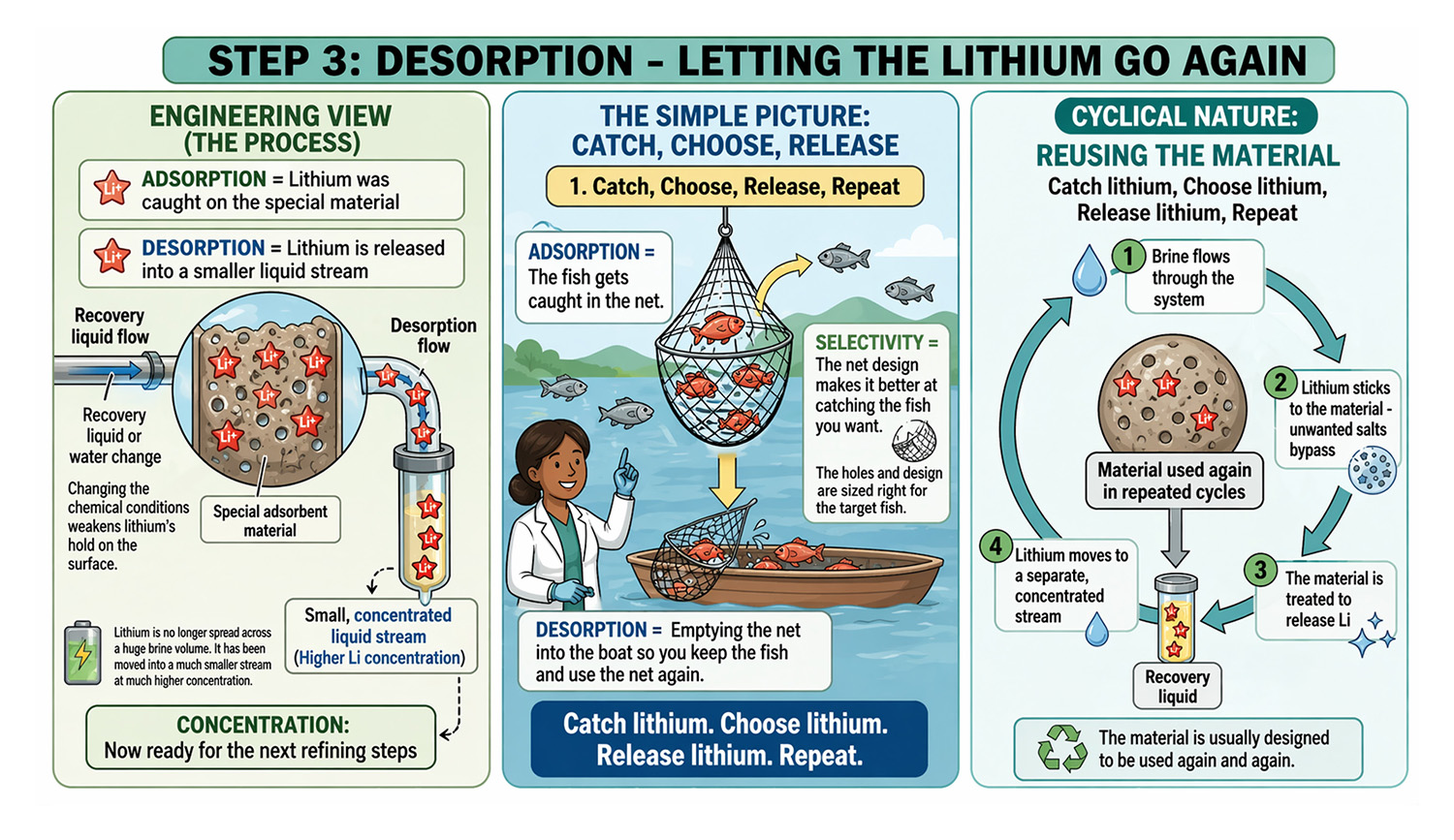

Step 3: Desorption - Letting the Lithium Go Again
Once the material has captured enough lithium, the next step is to get that lithium back off the surface.
This step is called desorption.
Desorption means releasing the lithium from the material so it can be collected in a smaller, more concentrated liquid stream.
If adsorption is the catching step, desorption is the release step.
You can think of it like picking apples with a glove:
- first the glove catches the apples
- then you take the apples off the glove and place them in a basket
Or like a bus:
- adsorption = passengers get on
- desorption = passengers get off at the right stop
In a DLE system, desorption is usually done by changing the chemical conditions around the material. Depending on the technology, that may involve water or another recovery liquid. This change weakens the lithium’s hold on the surface and allows it to come off.
Now the lithium is no longer spread across a huge volume of brine mixed with many other dissolved substances. It has been moved into a much smaller stream at a much higher concentration, ready for the next refining steps.
The Simple Picture: Catch, Choose, Release
Imagine a fishing net designed to catch only one species of fish:
- Adsorption = the fish gets caught in the net
- Selectivity = the holes and design of the net make it better at catching the fish you want instead of everything else
- Desorption = emptying the net into the boat so you can keep the fish and use the net again
That last part is important:
The material is usually meant to be used again and again in cycles. So the logic is simple, even if the chemistry is advanced:
Catch lithium. Choose lithium. Release lithium. Repeat.

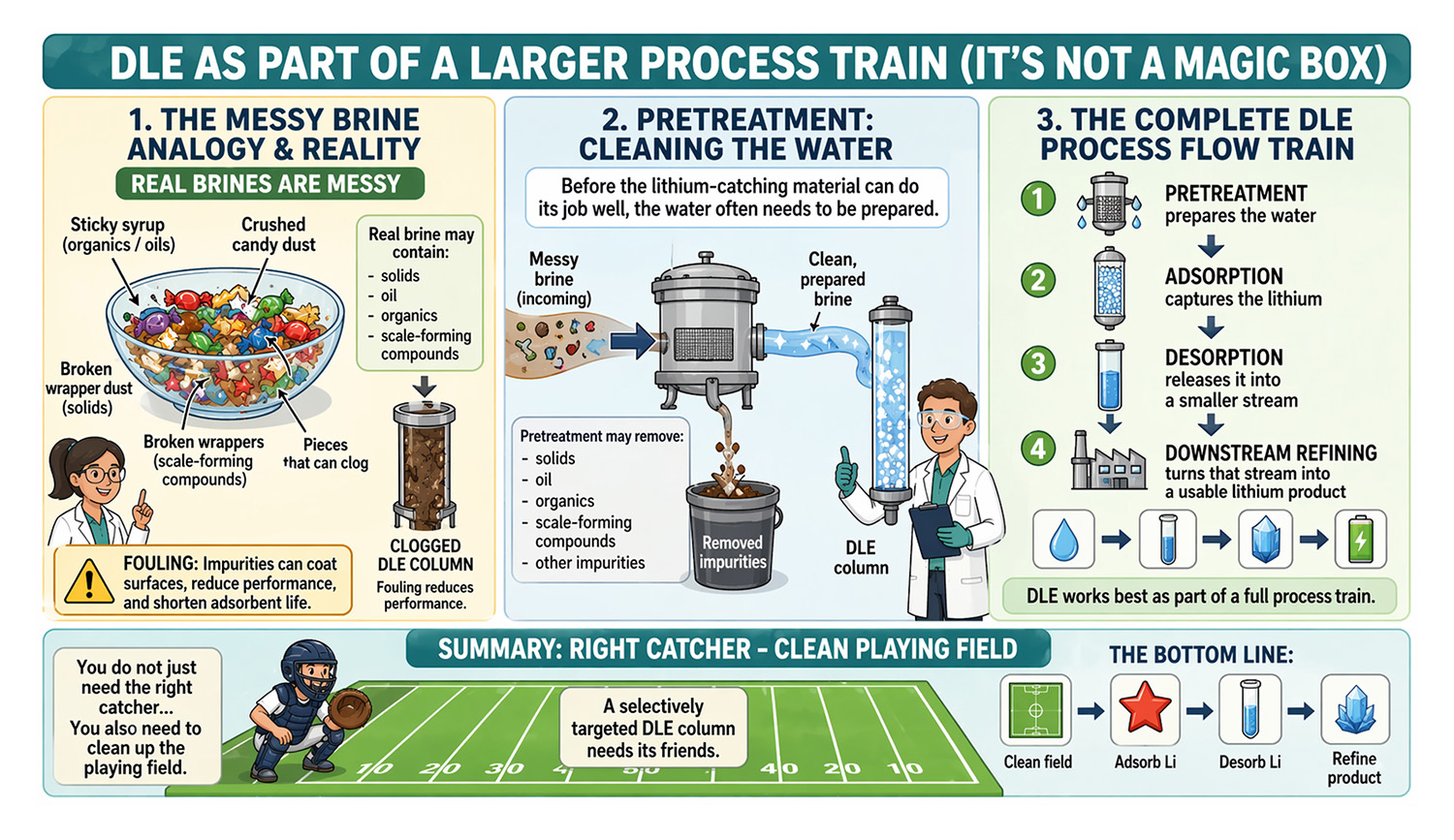

But DLE Does Not Work Alone
People sometimes talk about DLE as if it is one magic box. In reality, it is usually part of a larger process system.
Why?
Because real brines are messy.
If we go back to the candy bowl analogy, the problem is not just that there are different candies in the bowl. Sometimes the bowl also contains sticky syrup, crushed candy dust, broken wrappers, and pieces that can clog the sorting machine.
That is where pretreatment comes in.
Before the lithium-catching material can do its job well, the water often needs to be prepared. Depending on the source, pretreatment may remove solids, oil, organics, scale-forming compounds, or other impurities that would otherwise foul the system, reduce performance, or shorten the life of the adsorbent.
So DLE often works best as part of a full process train:
- pretreatment prepares the water
- adsorption captures the lithium
- desorption releases it into a smaller stream
- downstream refining turns that stream into a usable lithium product
In simple terms: You do not just need the right catcher - you also need to clean up the playing field.
Why This Matters
Traditional lithium production from evaporation ponds can take a very long time because it relies on large areas of land and months - sometimes even years - of natural evaporation.
DLE is different.
Instead of waiting for nature to slowly do the sorting, adsorption-based DLE aims to separate lithium more directly from liquid streams.
That can offer several important advantages, depending on the feedwater and the process design:
- faster lithium concentration
- less land use
- potential for lower freshwater use
- the ability to work with brines that are not suitable for evaporation ponds
- a more modular, process-based approach to recovery
In very simple terms, DLE is like using a smart, reusable lithium catcher instead of waiting for the sun to separate everything for you slowly.
One Final Note...
People often say "DLE" as if it were one single technology. It is not.
DLE includes different approaches and process designs. Some systems rely on adsorption, some on ion exchange, some on solvent extraction, some on membranes, and some on hybrid configurations.
But for adsorption-based DLE, the basic logic is always the same: Catch lithium → choose lithium well → release lithium
